Vega FE DX12特性支持【FL 12_1，光栅顺序视图， 保守光栅化】

剧毒术士马文的照片 剧毒术士马文2017-07-06最后更新: 2020-11-19
9

http://www.moepc.net/?post=2405


#Vega FE

Windows 10 version 1703 (build 15063)

ADAPTER 0
“Radeon Vega Frontier Edition”
VEN_1002, DEV_6863, SUBSYS_6B761002, REV_00
Dedicated video memory : 4211945472  bytes
Total video memory : 4193810432  bytes
Video driver version : 22.19.384.2
Maximum feature level : D3D_FEATURE_LEVEL_12_1 (0xc100)
DoublePrecisionFloatShaderOps : 1
OutputMergerLogicOp : 1
MinPrecisionSupport : D3D12_SHADER_MIN_PRECISION_SUPPORT_16_BIT (2)
TiledResourcesTier : D3D12_TILED_RESOURCES_TIER_3 (3)
ResourceBindingTier : D3D12_RESOURCE_BINDING_TIER_3 (3)
PSSpecifiedStencilRefSupported : 1
TypedUAVLoadAdditionalFormats : 1
ROVsSupported : 1
ConservativeRasterizationTier : D3D12_CONSERVATIVE_RASTERIZATION_TIER_3 (3)
StandardSwizzle64KBSupported : 0
CrossNodeSharingTier : D3D12_CROSS_NODE_SHARING_TIER_NOT_SUPPORTED (0)
CrossAdapterRowMajorTextureSupported : 0
VPAndRTArrayIndexFromAnyShaderFeedingRasterizerSupportedWithoutGSEmulation : 1
ResourceHeapTier : D3D12_RESOURCE_HEAP_TIER_2 (2)
MaxGPUVirtualAddressBitsPerResource : 44
MaxGPUVirtualAddressBitsPerProcess : 44
Adapter Node 0:    TileBasedRenderer: 0, UMA: 0, CacheCoherentUMA: 0, IsolatedMMU: 1
HighestShaderModel : D3D12_SHADER_MODEL_5_1 (0x0051)
WaveOps : 1
WaveLaneCountMin : 64
WaveLaneCountMax : 64
TotalLaneCount : 4096
ExpandedComputeResourceStates : 1
Int64ShaderOps : 1
RootSignature.HighestVersion : D3D_ROOT_SIGNATURE_VERSION_1_1 (2)
DepthBoundsTestSupported : 1
ProgrammableSamplePositionsTier : D3D12_PROGRAMMABLE_SAMPLE_POSITIONS_TIER_NOT_SUPPORTED (0)

ShaderCache.SupportFlags : D3D12_SHADER_CACHE_SUPPORT_SINGLE_PSO | LIBRARY (3)

与Fiji的区别：

Maximum Feature Level: Vega支持Feature level 12_1

【Fiji】D3D_FEATURE_LEVEL_12_0 (0xc000)

【Vega FE】D3D_FEATURE_LEVEL_12_1 (0xc100)

MinPrecisionSupport :

【Fiji】D3D12_SHADER_MIN_PRECISION_SUPPORT_NONE (0)

【Vega FE】D3D12_SHADER_MIN_PRECISION_SUPPORT_16_BIT (2) 【FP16?】

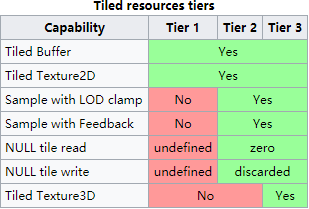

TiledResourcesTier :

【Fiji】D3D12_TILED_RESOURCES_TIER_2 (2)

【Vega FE】D3D12_TILED_RESOURCES_TIER_3 (3)



ROVsSupported ：Vega增加支持光栅顺序视图

【Fiji】False ->【Vega FE】True

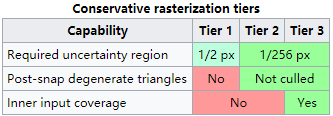

ConservativeRasterizationTier : 保守光栅化，Vega增加支持，还是最高的等级3（Pascal为等级2）

【Fiji】D3D12_CONSERVATIVE_RASTERIZATION_TIER_NOT_SUPPORTED (0)

【Vega FE】 D3D12_CONSERVATIVE_RASTERIZATION_TIER_3 (3)



TileBasedRenderer: 0【Pascal也显示为0不支持，但AMD的PPT有写Vega支持TBR】

MaxGPUVirtualAddressBitsPerResource : 【Fiji】40 ->【Vega FE】44 【显示44bit，Vega架构能够寻址49bit】
MaxGPUVirtualAddressBitsPerProcess :【Fiji】40 -> 【Vega FE】44


点击查看原图



GTX 1080 Pascal

Direct3D 12 feature checker (July 2017) by DmitryKo
https://forum.beyond3d.com/posts/1840641/

Windows 10 version 1703 (build 15063)
Checking for experimental shader models

ADAPTER 0
“NVIDIA GeForce GTX 1080”
VEN_10DE, DEV_1B80, SUBSYS_61803842, REV_A1
Dedicated video memory : 4168089600  bytes
Total video memory : 4104710144  bytes
Video driver version : 22.21.13.8476
Maximum feature level : D3D_FEATURE_LEVEL_12_1 (0xc100)
DoublePrecisionFloatShaderOps : 1
OutputMergerLogicOp : 1
MinPrecisionSupport : D3D12_SHADER_MIN_PRECISION_SUPPORT_NONE (0)
TiledResourcesTier : D3D12_TILED_RESOURCES_TIER_3 (3)
ResourceBindingTier : D3D12_RESOURCE_BINDING_TIER_3 (3)
PSSpecifiedStencilRefSupported : 0
TypedUAVLoadAdditionalFormats : 1
ROVsSupported : 1
ConservativeRasterizationTier : D3D12_CONSERVATIVE_RASTERIZATION_TIER_2 (2)
StandardSwizzle64KBSupported : 0
CrossNodeSharingTier : D3D12_CROSS_NODE_SHARING_TIER_NOT_SUPPORTED (0)
CrossAdapterRowMajorTextureSupported : 0
VPAndRTArrayIndexFromAnyShaderFeedingRasterizerSupportedWithoutGSEmulation : 1
ResourceHeapTier : D3D12_RESOURCE_HEAP_TIER_1 (1)
MaxGPUVirtualAddressBitsPerResource : 40
MaxGPUVirtualAddressBitsPerProcess : 40
Adapter Node 0:    TileBasedRenderer: 0, UMA: 0, CacheCoherentUMA: 0, IsolatedMMU: 1
HighestShaderModel : D3D12_SHADER_MODEL_6_0 (0x0060)
WaveOps : 1
WaveLaneCountMin : 32
WaveLaneCountMax : 32
TotalLaneCount : 40960
ExpandedComputeResourceStates : 1
Int64ShaderOps : 1
RootSignature.HighestVersion : D3D_ROOT_SIGNATURE_VERSION_1_1 (2)
DepthBoundsTestSupported : 1
ProgrammableSamplePositionsTier : D3D12_PROGRAMMABLE_SAMPLE_POSITIONS_TIER_2 (2)
ShaderCache.SupportFlags : D3D12_SHADER_CACHE_SUPPORT_SINGLE_PSO | LIBRARY (3)

GTX 980 Maxwell 2

ADAPTER 0
“NVIDIA GeForce GTX 980”
VEN_10DE, DEV_13C0, SUBSYS_236819DA, REV_A1
Dedicated video memory : 3221225472  bytes
Total video memory : 4294901760  bytes
Created Direct3D 12 device at feature level 11_0

Maximum feature level : D3D_FEATURE_LEVEL_11_1 (0xb100)
DoublePrecisionFloatShaderOps : 1
OutputMergerLogicOp : 1
MinPrecisionSupport : D3D12_SHADER_MIN_PRECISION_SUPPORT_NONE (0)
TiledResourcesTier : D3D12_TILED_RESOURCES_TIER_3 (3)
ResourceBindingTier : D3D12_RESOURCE_BINDING_TIER_2 (2)
PSSpecifiedStencilRefSupported : 0
TypedUAVLoadAdditionalFormats : 1
ROVsSupported : 1
ConservativeRasterizationTier : D3D12_CONSERVATIVE_RASTERIZATION_TIER_1 (1)
MaxGPUVirtualAddressBitsPerResource : 38
StandardSwizzle64KBSupported : 0
CrossNodeSharingTier : D3D12_CROSS_NODE_SHARING_TIER_NOT_SUPPORTED (0)
CrossAdapterRowMajorTextureSupported : 0
VPAndRTArrayIndexFromAnyShaderFeedingRasterizerSupportedWithoutGSEmulation : 0
ResourceHeapTier : D3D12_RESOURCE_HEAP_TIER_2 (2)
Adapter Node 0:     TileBasedRenderer: 0, UMA: 0, CacheCoherentUMA: 0

R9 290X GCN1.1

ADAPTER 0
“AMD Radeon R9 200 Series”
VEN_1002, DEV_67B0, SUBSYS_30801462, REV_00
Dedicated video memory : 3221225472  bytes
Total video memory : 4294901760  bytes
Video driver version : 22.19.171.257
Maximum feature level : D3D_FEATURE_LEVEL_12_0 (0xc000)
DoublePrecisionFloatShaderOps : 1
OutputMergerLogicOp : 1
MinPrecisionSupport : D3D12_SHADER_MIN_PRECISION_SUPPORT_NONE (0)
TiledResourcesTier : D3D12_TILED_RESOURCES_TIER_2 (2)
ResourceBindingTier : D3D12_RESOURCE_BINDING_TIER_3 (3)
PSSpecifiedStencilRefSupported : 1
TypedUAVLoadAdditionalFormats : 1
ROVsSupported : 0
ConservativeRasterizationTier : D3D12_CONSERVATIVE_RASTERIZATION_TIER_NOT_SUPPORTED (0)
StandardSwizzle64KBSupported : 0
CrossNodeSharingTier : D3D12_CROSS_NODE_SHARING_TIER_NOT_SUPPORTED (0)
CrossAdapterRowMajorTextureSupported : 0
VPAndRTArrayIndexFromAnyShaderFeedingRasterizerSupportedWithoutGSEmulation : 1
ResourceHeapTier : D3D12_RESOURCE_HEAP_TIER_2 (2)
MaxGPUVirtualAddressBitsPerResource : 40
MaxGPUVirtualAddressBitsPerProcess : 40
Adapter Node 0:  TileBasedRenderer: 0, UMA: 0, CacheCoherentUMA: 0, IsolatedMMU: 1
HighestShaderModel : D3D12_SHADER_MODEL_5_1 (0x0051)
WaveOps : 1
WaveLaneCountMin : 64
WaveLaneCountMax : 64
TotalLaneCount : 2816
ExpandedComputeResourceStates : 1
Int64ShaderOps : 1
RootSignature.HighestVersion : D3D_ROOT_SIGNATURE_VERSION_1_1 (2)
DepthBoundsTestSupported : 1
ProgrammableSamplePositionsTier : D3D12_PROGRAMMABLE_SAMPLE_POSITIONS_TIER_NOT_SUPPORTED (0)
ShaderCache.SupportFlags : D3D12_SHADER_CACHE_SUPPORT_SINGLE_PSO | LIBRARY (3)

R9 Fury GCN1.2

#Fury (Air)

Windows 10 version 1703 (build 15063)

ADAPTER 0
“AMD Radeon (TM) R9 Fury Series”
VEN_1002, DEV_7300, SUBSYS_E331174B, REV_CB
Dedicated video memory : 4269826048  bytes
Total video memory : 4240932864  bytes
Video driver version : 22.19.171.1
Maximum feature level : D3D_FEATURE_LEVEL_12_0 (0xc000)
DoublePrecisionFloatShaderOps : 1
OutputMergerLogicOp : 1
MinPrecisionSupport : D3D12_SHADER_MIN_PRECISION_SUPPORT_NONE (0)
TiledResourcesTier : D3D12_TILED_RESOURCES_TIER_2 (2)
ResourceBindingTier : D3D12_RESOURCE_BINDING_TIER_3 (3)
PSSpecifiedStencilRefSupported : 1
TypedUAVLoadAdditionalFormats : 1
ROVsSupported : 0
ConservativeRasterizationTier : D3D12_CONSERVATIVE_RASTERIZATION_TIER_NOT_SUPPORTED (0)
StandardSwizzle64KBSupported : 0
CrossNodeSharingTier : D3D12_CROSS_NODE_SHARING_TIER_NOT_SUPPORTED (0)
CrossAdapterRowMajorTextureSupported : 0
VPAndRTArrayIndexFromAnyShaderFeedingRasterizerSupportedWithoutGSEmulation : 1
ResourceHeapTier : D3D12_RESOURCE_HEAP_TIER_2 (2)
MaxGPUVirtualAddressBitsPerResource : 40
MaxGPUVirtualAddressBitsPerProcess : 40
Adapter Node 0:     TileBasedRenderer: 0, UMA: 0, CacheCoherentUMA: 0, IsolatedMMU: 1
HighestShaderModel : D3D12_SHADER_MODEL_5_1 (0x0051)
WaveOps : 1
WaveLaneCountMin : 64
WaveLaneCountMax : 64
TotalLaneCount : 3584
ExpandedComputeResourceStates : 1
Int64ShaderOps : 1
RootSignature.HighestVersion : D3D_ROOT_SIGNATURE_VERSION_1_1 (2)
DepthBoundsTestSupported : 1
ProgrammableSamplePositionsTier : D3D12_PROGRAMMABLE_SAMPLE_POSITIONS_TIER_NOT_SUPPORTED (0)
ShaderCache.SupportFlags : D3D12_SHADER_CACHE_SUPPORT_SINGLE_PSO | LIBRARY (3)


来源：https://forum.beyond3d.com/posts/1838269/、Reddit u/Badcookies、Wikipedia

http://www.moepc.net/?post=2405

标签
剧毒术士马文的照片 剧毒术士马文2017-07-06最后更新: 2020-11-19
9
剧毒术士马文的照片

剧毒术士马文

留学中　Comp.Arch|RISCV|HPC|FPGA 最近沉迷明日方舟日服 联系方式请 discord 或者 weibo 私信。目前不在其他平台活动。 邮箱已更新为[email protected]。 看板娘：ほし先生♥

相关文章

Intel 2021-2025展望 Part0：制程及封装

2021-08-23

代号”Chagall”，AMD Threadripper 5000系列预计于8月份发布

2021-07-10

SiFive发布P550/P270 RISC-V架构核，Intel 7nm制程平台2022年登场

2021-06-23

Samsung Exynos Mobile Smartphone SoC SKU list

2020-12-28

9 评论

  1. 上面那个980的完全不对。最终支持什么还是官网和测试说了算，驱动报的能力只能作为参考。
    https://developer.nvidia.com/dx12-dos-and-donts
    比如现在官网说Maxwell/Pascal只支持Resource Binding Tier 2，最新版驱动（和维基）得到的反馈却是Tier 3 。具体是啥？由于现在并没有能用到Tier 3的测试，所以谁也不知道。。（大概是Fermi DX12驱动带来的bug吧）
