Supermicro AMD EPYC主板

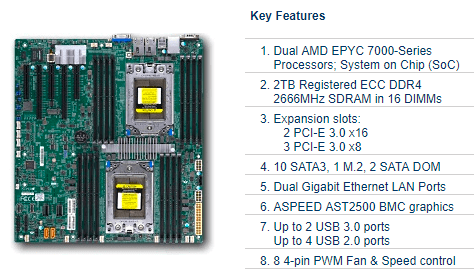

H11DSi


Physical Stats

Form Factor
E-ATX
Dimensions
12″ x 13.05″ (30.5cm x 33.1cm)

Processor/Chipset

CPU
Dual AMD EPYC? 7000-series Processors
Socket SP3
Chipset
System on Chip

System Memory

Memory Capacity
16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
See Detailed Memory Support Matrix
Memory Type
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
2 1GbE LAN via Intel® i350-AM21
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC

Input / Output

SATA
10 SATA3 (6 Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connector
1 TPM 2.0 header

Expansion Slots

PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16

M.2
Interface: PCI-E 3.0 x2
Form factor: 22110
Support SATA devices

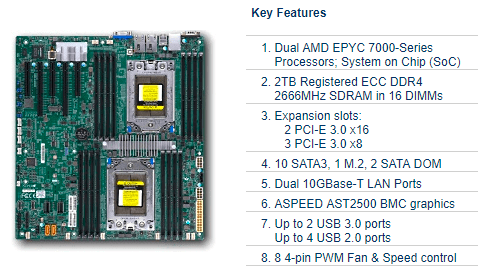

H11DSi-NT


Physical Stats

Form Factor
E-ATX
Dimensions
12″ x 13.05″ (30.5cm x 33.1cm)

Processor/Chipset

CPU
Dual AMD EPYC? 7000-series Processors
Socket SP3
Chipset
System on Chip

System Memory

Memory Capacity
16 DIMM sockets
Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
8-channel memory bus
For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
See Detailed Memory Support Matrix
Memory Type
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Intel® X550 10G Base-T Ethernet Controller
1 Realtek RTL8211E PHY (dedicated IPMI)
VGA
ASPEED AST2500 BMC

Input / Output

SATA
10 SATA3 (6 Gbps) ports
NVMe
2 Internal NVMe Ports (PCI-E 3.0 x4)
LAN
2 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (rear)
4 USB 2.0 ports (2 rear + 2 via header)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connectors
1 TPM 2.0 header

Expansion Slots

PCI-Express
3 PCI-E 3.0 x8
2 PCI-E 3.0 x16

M.2
Interface: PCI-E 3.0 x2
Form Factor: 22110
Support SATA devices

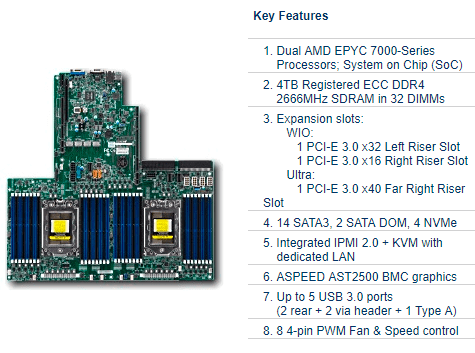

H11DSU-iN


Processor/Chipset

CPU
Dual AMD EPYC? 7000-series Processors
Socket SP3
Chipset
System on Chip

System Memory

Memory Capacity
32 DIMM sockets
Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM in 32 DIMMs
8-channel memory bus
Memory Type
DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs
DIMM Sizes
4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
SATA3 (6 Gbps)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC
Network Controllers
Provided via Ultra Riser Card
VGA
ASPEED AST2500 BMC

Input / Output

SATA
14 SATA3 (6 Gbps) ports
LAN
1 RJ45 Dedicated IPMI LAN port
USB
5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
VGA
1 VGA port
Others
1 COM port (rear)
2 SATA DOM power connector
4 NVMe
TPM 1.2 header

Expansion Slots

PCI-Express
WIO:
    1 PCI-E 3.0 x32 Left Riser Slot
    1 PCI-E 3.0 x16 Right Riser Slot
Ultra:
    1 PCI-E 3.0 x40 Far Right Riser Slot




via:https://www.supermicro.nl/products/nfo/AMD_SP3.cfm?pg=MOBO
