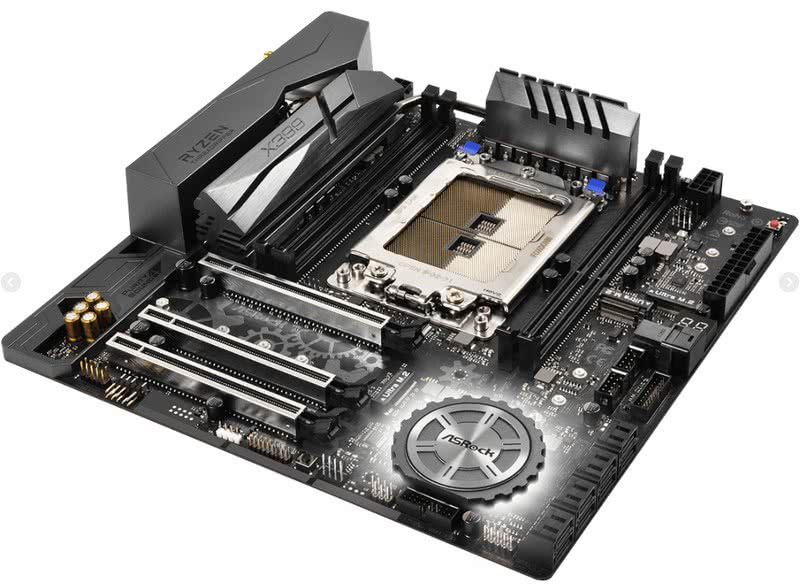

ASRock华擎 X399M Taichi 太极:首款X399 MATX主板

专做妖板的华擎继X299E-ITX之后,出人意料的带来了这款MATX的X399。

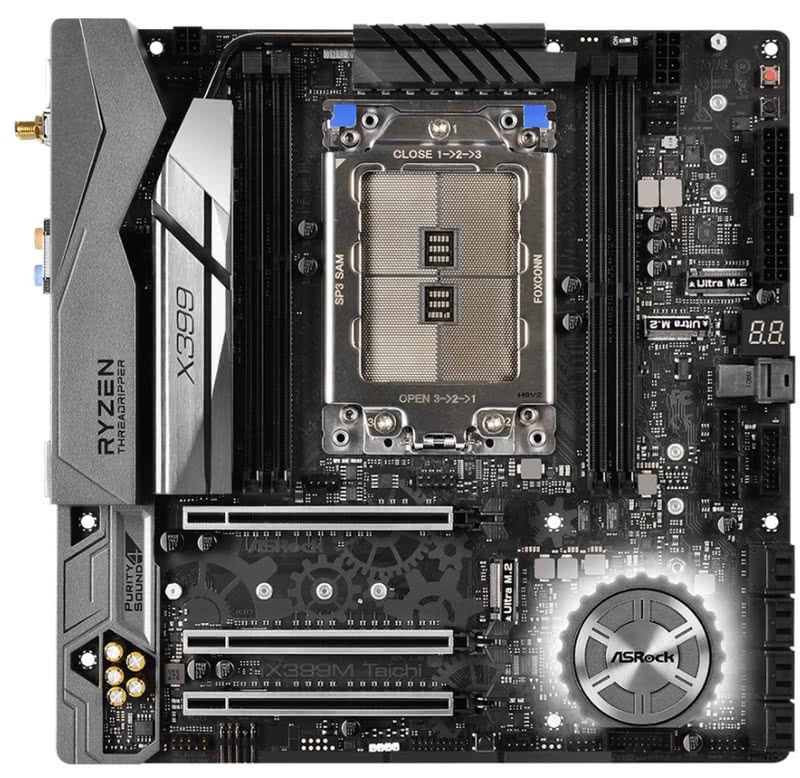

X399的插槽十分巨大,加上供电根本没给其他东西留下多少空间,但华擎还是在MATX的空间里塞进了四通道UDIMM内存的四个插槽,11相供电和3个全速PCIe 3.0 x16插槽。






规格:

Unique Feature
ASRock USB 3.1 Gen2

  • – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s)
  • – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)

ASRock Super Alloy

  • – XXL Aluminum Alloy Heatsink
  • – Premium 60A Power Choke
  • – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
  • – IR3555M Dr. MOS 60A
  • – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
  • – I/O Armor
  • – Matte Black PCB
  • – High Density Glass Fabric PCB

Intel® 802.11ac WiFi
ASRock Steel Slots
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop


CPU

  • – Supports AMD TR4 Socket Ryzen Threadripper Series CPUs
  • – IR Digital PWM
  • – 11 Power Phase design


Chipset

  • – AMD X399


Memory

  • – Quad Channel DDR4 Memory Technology
  • – 4 x DDR4 DIMM Slots
  • – Supports DDR4 3600+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory (U-DIMM)*
  • – Max. capacity of system memory: 64GB**
  • – 15μ Gold Contact in DIMM Slots

*Please refer to Memory Support List on ASRock’s website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.


BIOS

  • – 128Mb AMI UEFI Legal BIOS with GUI support
  • – Supports “Plug and Play”
  • – ACPI 5.1 compliance wake up events
  • – Supports jumperfree
  • – SMBIOS 2.3 support
  • – CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment


Graphics

  • – n/a


Audio

  • – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  • – Premium Blu-ray Audio support
  • – Supports Surge Protection
  • – Supports Purity Sound? 4
  • – Nichicon Fine Gold Series Audio Caps
  • – 120dB SNR DAC with Differential Amplifier
  • – NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
  • – Pure Power-In
  • – Direct Drive Technology
  • – PCB isolate shielding
  • – Impedance Sensing on Front Out port
  • – Individual PCB Layers for R/L Audio Channel
  • – Gold Audio Jacks
  • – 15μ Gold Audio Connector
  • – Supports DTS Connect


LAN

  • – Gigabit LAN 10/100/1000 Mb/s
  • – 2 x GigaLAN Intel® I211AT
  • – Supports Wake-On-LAN
  • – Supports Lightning/ESD Protection
  • – Supports Dual LAN with Teaming*
  • – Supports Energy Efficient Ethernet 802.3az
  • – Supports PXE

*Teaming is supported on Windows® 10 RS2 and above.


Wireless LAN

  • – Intel® 802.11ac WiFi Module
  • – Supports IEEE 802.11a/b/g/n/ac
  • – Supports Dual-Band (2.4/5 GHz)
  • – Supports high speed wireless connections up to 433Mbps
  • – Supports Bluetooth 4.2 / 3.0 + High speed class II


Slots

  • – 3 x PCI Express 3.0 x16 Slots (PCIE1/PCIE2/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x16 (PCIE2); triple at x16 (PCIE1) / x16 (PCIE2) / x16 (PCIE3))*
  • – Supports AMD Quad CrossFireX? and CrossFireX?
  • – Supports NVIDIA® Quad SLI? and SLI?
  • – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
  • – 15μ Gold Contact in VGA PCIe Slot (PCIE1, PCIE2 and PCIE3)

*Supports NVMe SSD as boot disks


Storage

  • – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
  • – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280/22110 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  • – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  • – 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
  • – 1 x U.2 Connector**

*Supports NVMe RAID (RAID 0, RAID 1 and RAID 10)
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit

**If U.2 Connector is plugged, M2_1 will be disabled


Connector

  • – 1 x TPM Header
  • – 1 x Power LED and Speaker Header
  • – 1 x RGB LED Header* Supports in total up to 12V/3A, 36W LED Strip
  • – 1 x CPU Fan Connector (4-pin)*
  • – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
  • – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
  • – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  • – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  • – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • – 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
  • – 1 x Front Panel Audio Connector (15μ Gold Audio Connector)****
  • – 1 x Right Angle Front Panel Audio Connector****
  • – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
  • – 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (Supports ESD Protection)
  • – 1 x Clear CMOS Button
  • – 1 x Dr. Debug with LED
  • – 1 x Power Button
  • – 1 x Reset Button
  • – 1 x CPU Xtreme OC Switch


*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The CPU Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CPU_FAN1, CHA_FAN1, CHA_FAN2, CPU_OPT/W_PUMP and CHA_FAN3/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

****Connect the audio device to either one of the audio connectors.

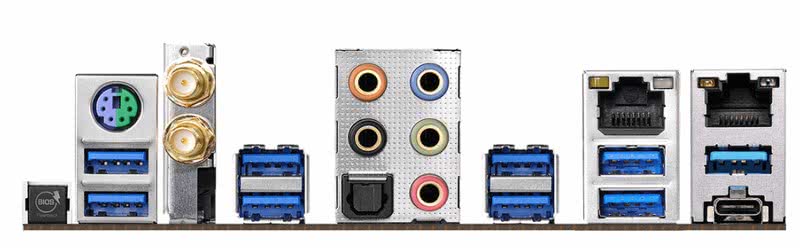

Rear Panel I/O

  • – 2 x Antenna Ports
  • – 1 x PS/2 Mouse/Keyboard Port
  • – 1 x Optical SPDIF Out Port
  • – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  • – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
  • – 8 x USB 3.1 Gen1 Ports (Supports ESD Protection)*
  • – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
  • – 1 x BIOS Flashback Button
  • – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

*Ultra USB Power is supported on USB3_5 port.
ACPI wake-up function is not supported on USB3_5 port.


Software and UEFI

Software

  • – ASRock A-Tuning
  • – ASRock RGB LED
  • – ASRock APP Charger
  • – ASRock XFast LAN

UEFI

  • – ASRock EZ Mode
  • – ASRock Full HD UEFI
  • – ASRock Instant Flash
  • – ASRock Internet Flash
  • – ASRock Easy RAID Installer

*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD

  • – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories


  • – Quick Installation Guide, Support CD, I/O Shield
  • – 4 x SATA Data Cables
  • – 1 x ASRock SLI_HB_Bridge_1S Card
  • – 1 x ASRock SLI_HB_Bridge_2S Card
  • – 2 x ASRock WiFi 2.4/5 GHz Antennas
  • – 3 x Screws for M.2 Sockets

Hardware Monitor


  • – Temperature Sensing: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  • – Fan Tachometer: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  • – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  • – Fan Multi-Speed Control: CPU, CPU Optional/Water Pump, Chassis, Chassis Optional/Water Pump Fans
  • – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, VCORE_NB, DRAM, PCH 1.05V, +1.8V, VDDP
  • Form Factor
  • – Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • – 8 Layer PCB
  • – 2oz Copper PCB


OS

  • – Microsoft® Windows® 10 64-bit
  • Certifications
  • – FCC, CE
  • – ErP/EuP ready (ErP/EuP ready power supply is required)
